Provisional Public Measurements for Hydrofoil Systems:



Hydrofoil Masts

  • m (total length)
  • n (minimum chord)

foil measurements mast

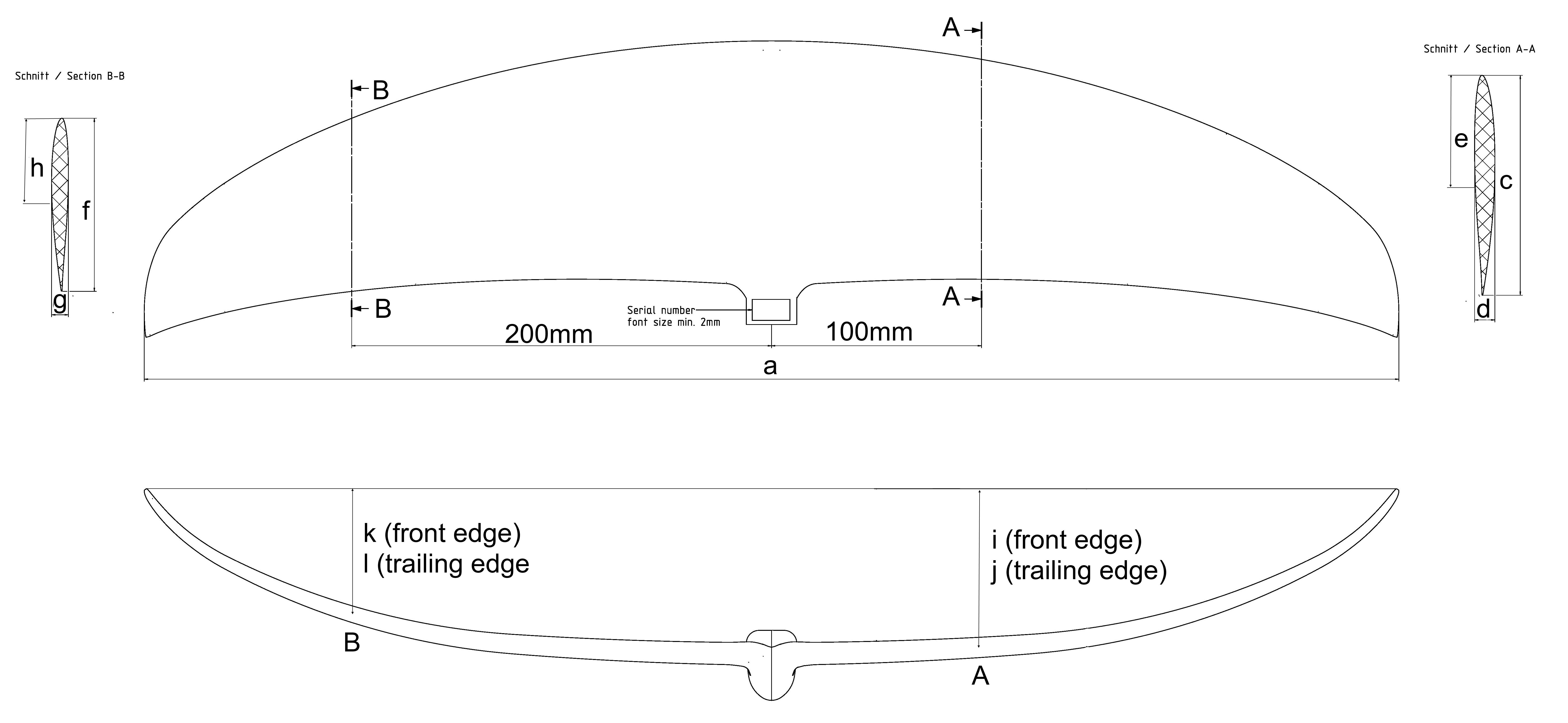

Hydrofoil Frontwings

  • a (span)
  • c (chord at 100mm from centerline)
  • f (chord at 200mm from centerline)

foil measurements frontwing

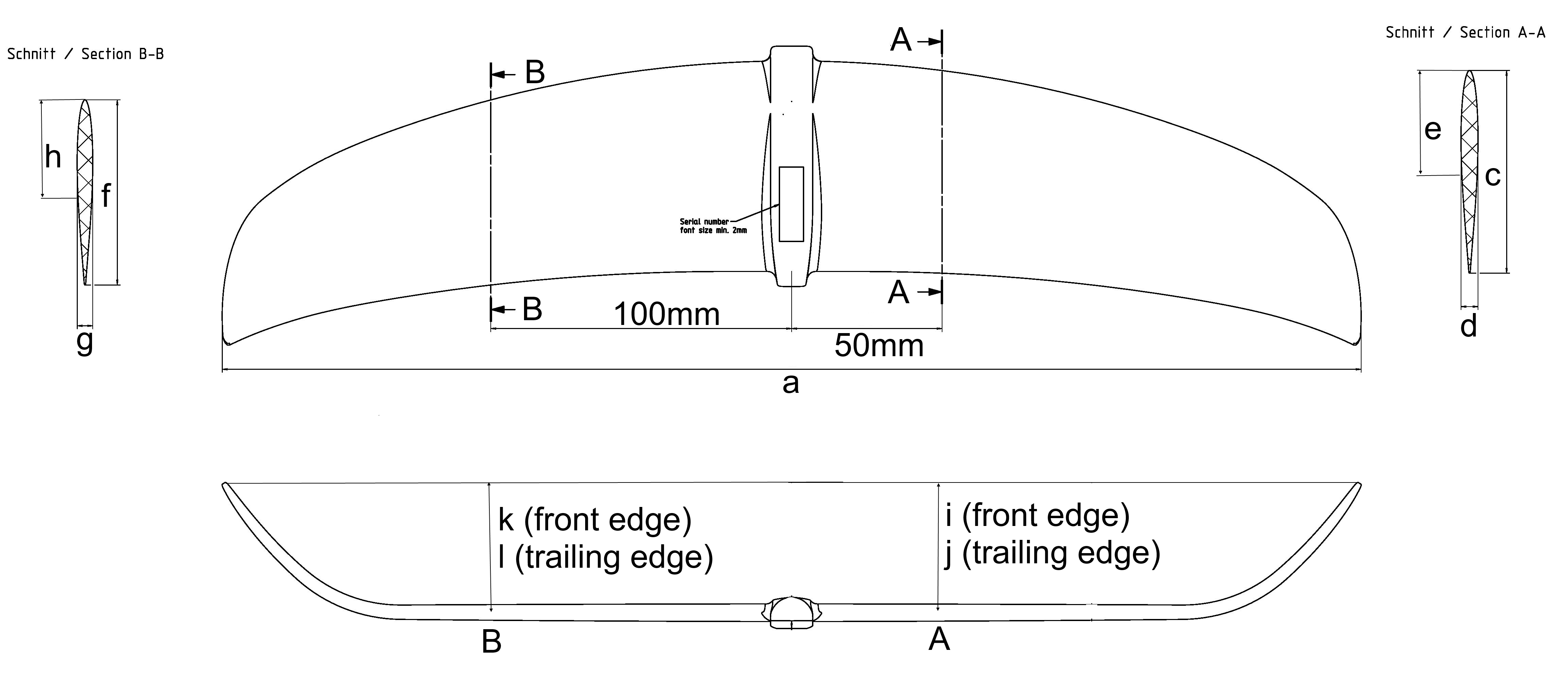

Hydrofoil Rearwings / Stabilizer

  • a (span)
  • c (chord at 50mm from centerline)
  • f (chord at 100mm from centerline)

foil measurements rearwing



Hydrofoil Stabilizers

  • m (total length)
  • n (max. horizontal diameter)
  • o (max. vertical diameter
  • r (distance from front to mast connection)

foil measurements fuselage 2



Accepted manufacturing tolerances for hydrofoil systems

Weight

+/- 5%

Height / Length m, a, b +/- 1.00 mm (tbc) (down from 2mm)

Chord

n, c, f - 1.00 mm

Profile Surface Scan Measurements

  +/- 0.25 mm (tbc) (down from 0.5mm)


Fuselage Diameter

n, o, p, q +/- 0.25 mm (tbc) (down from 0.5mm)

Span

a +/- 1.00 mm

All other measurements           +/- 1.00 mm



Provisional Public Measurements for RAM-Air Kites:

  • True size (projected area)
  • Max span
  • Max chord
  • Accepted manufacturing tolerances for RAM-Air kites:
Weight

+/- 5.00%

Leading / Trailing Edge seam measurements +/- 1.00%, or +/- 2.00mm, whichever is greater

Chord, Span

+/- 1.00 %

Any other point-to-point measurements between measurement points (and/or bridle attachments)

+/- 1.00%, or +/- 2.00mm, whichever is greater
